Free-Fit Hinge Pins for Medical Device Handles

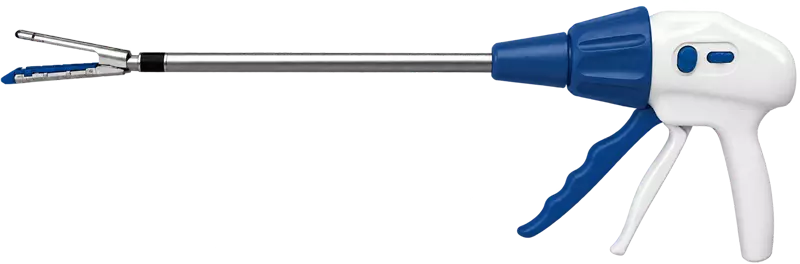

A leading surgical device manufacturer was using seven different Machined Solid Pins as free-fit axles in a surgical stapler assembly. The pins were slip-fit into place and retained by a plastic shroud that completely enclosed the outside of the medical device.

The Machined Solid Pins were specified with an outer diameter (OD) tolerance of ±.0005" (0.0127 mm) and a length tolerance of ±.003" (0.076 mm). The pin material was specified as AISI 303 (UNS S30300) / X8CrNiS18-9 (1.4305) austenitic stainless steel (SST). Since this grade of stainless steel is most readily available in bar stock, the material specification, combined with the tight dimensional tolerances, essentially dictated that the pins be machined rather than manufactured using a significantly less expensive production method such as cold heading.

SPIROL's Application Engineering team conducted a thorough review of the performance requirements and determined that the tolerances specified for both length and diameter were significantly tighter than necessary, given that the pins served solely as free-fit hinge pins in the surgical device. In other words, the original specifications were adding significant manufacturing cost without providing any functional benefit to the assembly.

SPIROL posed a simple question to the medical device manufacturer: "If you could save millions of dollars on the cost of the pins used in this surgical device, with no change in assembly performance, by allowing wider dimensional tolerances on the diameter and length, would you be interested?" Of course, they were.

SPIROL Engineering recommended widening the diameter tolerance from ±.0005" (0.0127 mm) to ±.001" (0.025 mm) and the length tolerance from ±.003" (0.076 mm) to ±.010" (0.25 mm). To put this into perspective, even though the allowable length tolerance was more than tripled, the difference is only about the width of two to three human hairs.

SPIROL also recommended changing the material from AISI 303 (UNS S30300) / X8CrNiS18-9 (1.4305) stainless steel, to AISI 305 (UNS S30500) / X4CrNi18-12 (1.4303) stainless steel. While both grades are austenitic stainless steel, the change to 305 / 1.4303 stainless steel, combined with the wider diameter and length tolerances, enabled the pins to be cold headed from commercially available wire rather than machined from bar stock - without compromising the fit, function, or performance of the assembly.

By replacing the seven Machined Solid Pins with Cold Headed Solid Pins, the medical device manufacturer realized annual savings of more than $3 million.
